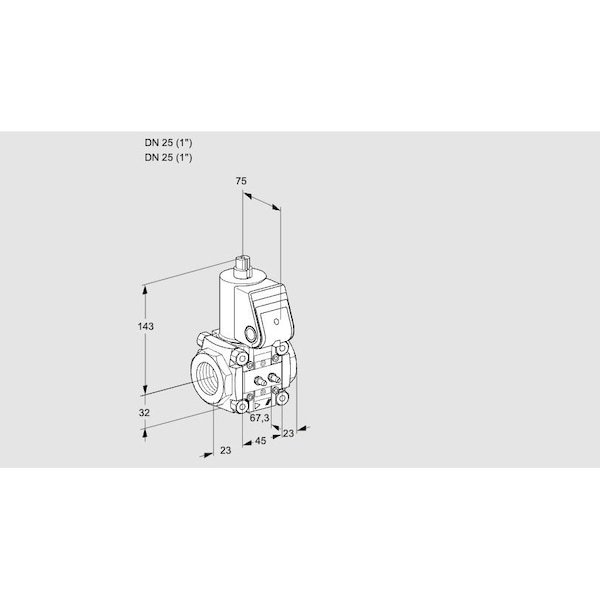

Gas Solenoid Valve - NC, 500 mbar, IP65, Flow Adjustment, EN 161

The HONEYWELL KROMSCHRODER VAS1T25N/NQ is a Class A solenoid valve intended for use in automatic shut-off applications for gas and air, in accordance with EN 161 standards. The valve is normally closed (NC) type; closes when not energized and features a pilot lamp and flow adjustment capability. It supports maximum operating pressure up to 500 mbar, offers protection rated at IP65, and holds EU certification as well as FM and CSA approvals. The unit is suitable for integration into systems requiring up to SIL 3 or PL e.

Key features include:

• Size range: 1 to 9; DN (nominal diameter): 10 to 125
• Connection options: threaded or flanged
• Operation types: quick opening/quick closing or slow opening/quick closing
• Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions include models with position indicator, visual indicator, fitted bypass/pilot gas valve, or fitted pressure switches
