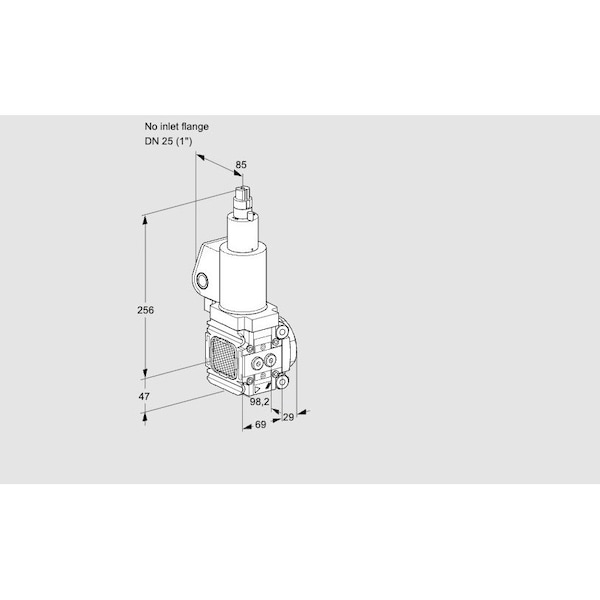

Gas Solenoid Valve - VAS2, 500 mbar, IP65, Pilot Lamp, Adjustable Flow

The HONEYWELL KROMSCHRODER VAS2-/25R/LQSL is a Class A solenoid valve intended for use in applications requiring the control of gas and air. It operates according to EN 161 standards, remains in a closed position when not energized, and is rated for a maximum operating pressure of 500 mbar. This model includes pilot lamp indicator and adjustable flow setting. The unit is rated IP65 ingress protection and certified by EU, FM, and CSA authorities. It meets requirements for SIL 3 and PL e classification.

Key features include:

• Size range: 1 to 9; DN (nominal diameter): 10 to 125
• Connection options: threaded or flanged
• Operation types: quick opening/quick closing or slow opening/quick closing
• Compatible with mains voltages of 24 V DC, 120 V AC, or 230 V AC
• Electrical connection through terminal block
• Available options include position indicator, visual indicator, integrated bypass/pilot gas valve, or integrated pressure switches DG../VC
