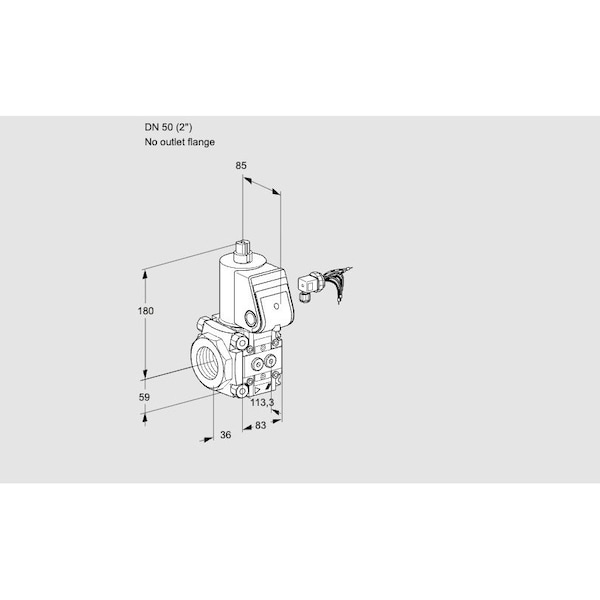

Gas Solenoid Valve - VAS350, 500 mbar, IP65, Class A

The HONEYWELL KROMSCHRODER VAS350/-R/NW is a Class A solenoid valve intended for use in applications requiring the shut-off of gas and air. It operates in accordance with EN 161 standards, remaining closed when not energized. The unit is rated for a maximum operating pressure of 500 mbar and includes features such as a pilot lamp and flow adjustment. It is rated to IP65 ingress protection standard, certified by EU, FM, and CSA, and suitable for installation in systems classified up to SIL 3 and PL e.

Key features:

• Size range: 1 to 9; DN (nominal diameter): 10 to 125
• Connection options: threaded or flanged
• Opening/closing action: quick opening/quick closing or slow opening/quick closing
• Mains voltage options: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions include models with position indicator, visual indicator, fitted bypass or pilot gas valve, and fitted pressure switches DG../VC
