Gas Solenoid Valve - VCS Series, 500 mbar, IP65, EN 161 Class A Certified
Mfr # KS88203357
Zoro # G715425669
Specifications
Product Information
Description

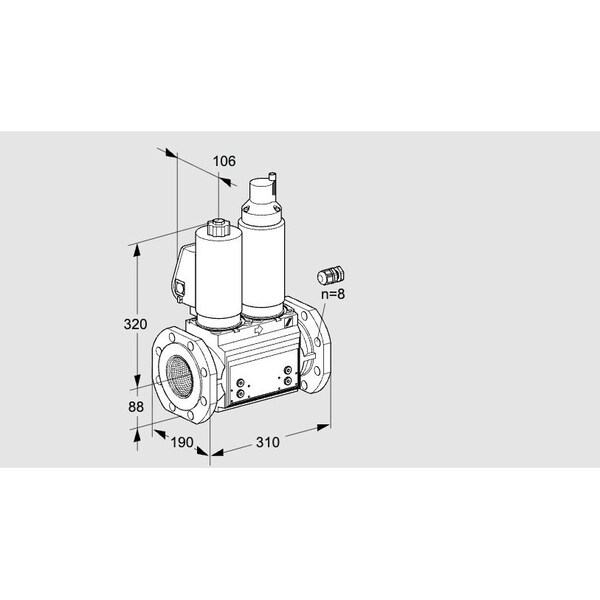

The HONEYWELL KROMSCHRODER VCS780F05NLWGL3B/PPPP/MMMM is a Class A solenoid valve intended for use in applications requiring the control of gas and air flow. This valve meets the requirements specified by EN 161 standards and is configured to be closed when not energized. It features a maximum operating pressure of 500 mbar and includes both a pilot lamp and adjustable flow settings. The unit is rated IP65 for ingress protection and holds EU certification as well as FM and CSA approvals. It also holds certification according to SIL 3 and PL e standards.
Key features include:
- Size range: 1 to 9
- Nominal diameter (DN): 10 to 125
- Connection options: threaded or flanged
- Opening/closing types: quick opening, quick closing or slow opening, quick closing
- Mains voltage options: 24 V DC, 120 V AC, or 230 V AC
- Electrical connection via terminal block
- Available versions with position indicator, visual indicator, fitted bypass/pilot gas valve, or fitted pressure switches
