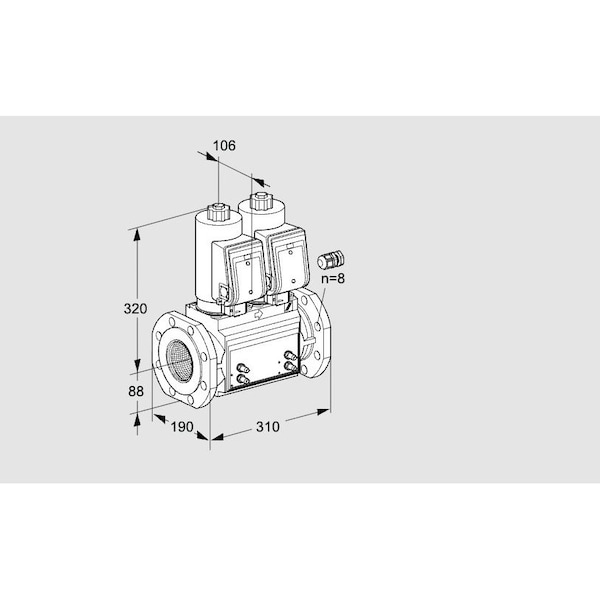

Gas Solenoid Valve – VCS Series, 500 mbar, IP65, Threaded/Flanged

The HONEYWELL KROMSCHRODER VCS780F05NNWSR3B/MMMM/PPPP is a Class A solenoid valve intended for use in applications requiring the shut-off of gas and air. The valve is configured to be closed in a de-energized state and operates at a maximum pressure of 500 mbar. It features an integrated pilot lamp, flow adjustment capability, and is rated to IP65 for ingress protection. The unit holds EU certification as well as FM and CSA approvals, with certification according to SIL 3 and PL e standards.

Key features include:

• Size range: 1 to 9; DN (nominal diameter): 10 to 125
• Connection options: threaded or flanged
• Operation types: quick opening/quick closing or slow opening/quick closing
• Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions include models with position indicators, visual indicators, fitted bypass/pilot gas valves, or integrated pressure switches
