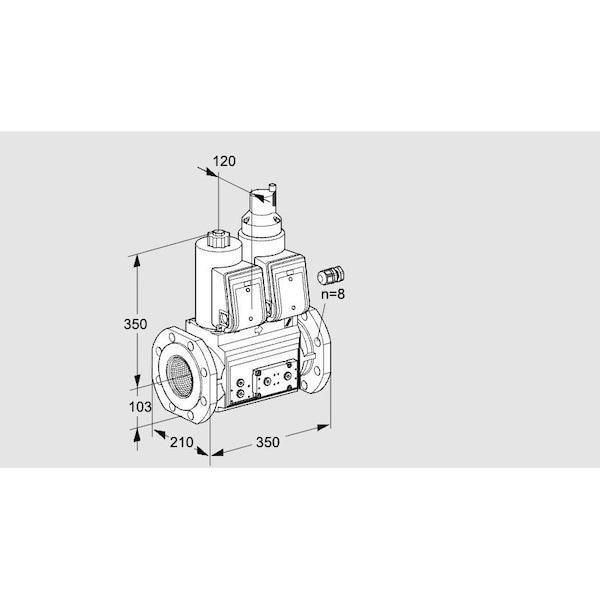

Gas Solenoid Valve – VCS Series, Class A, 500 mbar, IP65, EN 161 Certified

The HONEYWELL KROMSCHRODER VCS8100F05NLWR3E/PPPP/PPEP is a Class A solenoid valve intended for use in applications requiring the control of gas and air flow. It operates in accordance with EN 161 standards, remaining closed when de-energized, and is suitable for use at pressures up to 500 mbar. The unit features a pilot lamp and flow adjustment capability, rated to IP65 ingress protection standard, and certified according to applicable EU, FM, and CSA standards. This model meets requirements for SIL 3 and PL e classification.

Key features include:

• Size range: 1 to 9; DN (nominal diameter): 10 to 125
• Connection options: threaded or flanged
• Operation modes: quick opening/quick closing or slow opening/quick closing
• Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions include models with position indicator, visual indicator, fitted bypass/pilot gas valve, or pressure switches
