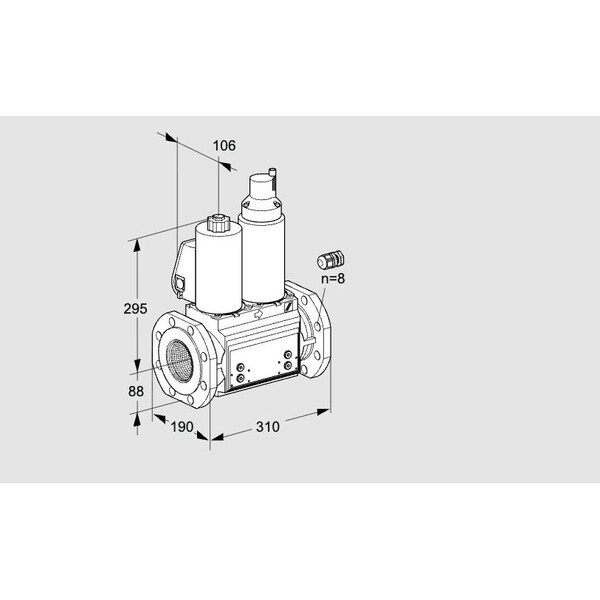

Gas Solenoid Valve – VCS Series, Class A, 500 mbar, IP65, EN 161 Certified

The HONEYWELL KROMSCHRODER VCS780F05NLWL3B/PPPP/MPPM is a Class A solenoid valve intended for use in automatic shut-off applications involving gas and air. It conforms to EN 161 standards, remains closed when not energized. This model is rated for a maximum operating pressure of 500 mbar and includes pilot lamp indication and flow adjustment options. The unit is rated IP65 for ingress protection and holds EU certification as well as FM and CSA approvals. It is certified according to SIL 3 and PL e system requirements.

Key features include:

• Size range: 1 to 9; nominal diameter (DN) from 10 to 125
• Connection options: threaded or flanged
• Opening/closing modes: quick opening & closing, or slow opening & quick closing
• Mains voltage compatibility: available in 24 V DC, 120 V AC, or 230 V AC versions
• Electrical connection via terminal block
• Available variants include models with position indicators, visual indicators, fitted bypass/pilot gas valves, or integrated pressure switches
