Pressure Switch – Adjustable, Air/Flue Gas, -1.5 to 150 mbar

The Honeywell Kromschroder Pressure Switch is rated for use in applications involving air and flue gas pressure measurement. This device features a switching point adjustment via a setting dial and is compatible with air, flue gas, or non-aggressive gases when operated within the specified measurement range (-1.5 to 150 mbar / 0.12 to 20" WC).

Key features include:

• Certified by EU, UL listed; FM and AGA approved; EAC and RoHS compliant
• Adjustable switching point using an integrated setting dial
• Suitable media: Air, flue gas, non-aggressive gases
• Measurement range: -1.5 to 150 mbar (0.12 to 20" WC)

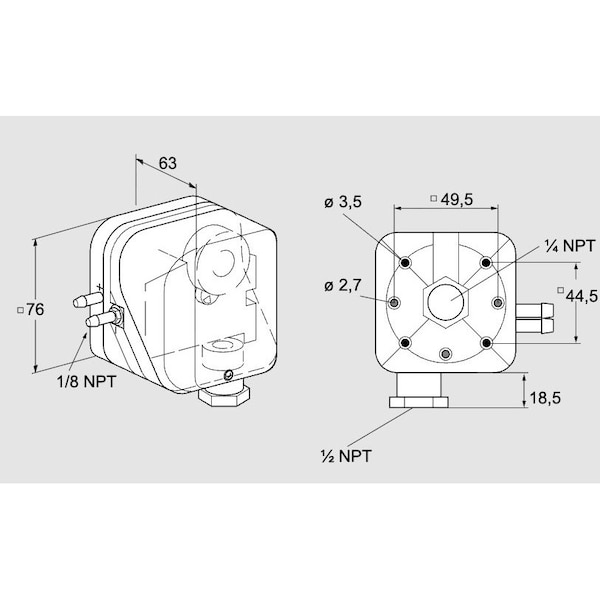

• Pneumatic connections available in tube connections; CE versions offer Rp 1/4 or Rp 1/8 threads; UL versions offer 1/4" NPT or 1/8" NPT threads
• Contact options: Silver contacts (24–250V AC, 0.05–5A) or gold contacts (5–250V AC, 0.01–5A) for CE version; silver contacts (30–240V AC, 5A) or gold contacts (max 30V AC, 0.05A) for UL version
• Screw terminals with M16x1.5 cable gland or optional screw terminals with a 1/2" NPT cable conduit
• Silicon-free construction
