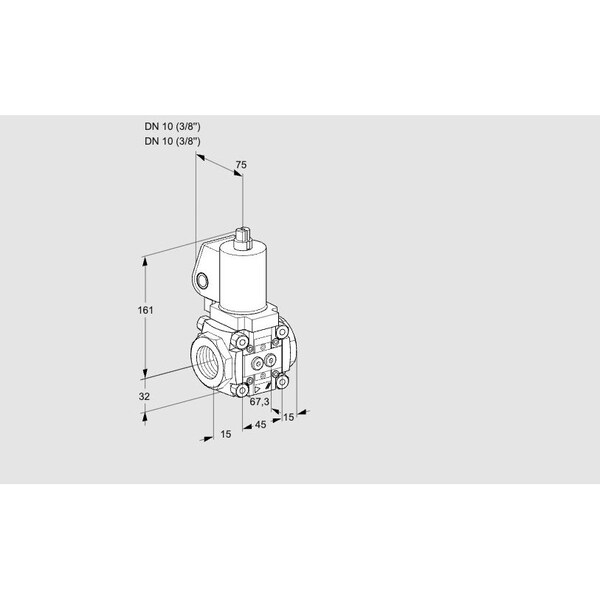

Solenoid Gas Safety Valve - 500 mbar, IP65, EN 161 Class A

The HONEYWELL KROMSCHRODER VAS1T10N/NWSL is a Class A solenoid gas safety valve intended for use in automatic shut-off applications involving gas and air. When de-energized, the valve is in a closed position and features flow adjustment, a pilot lamp, and an IP65-rated enclosure. It is certified to EN 161 standards with approvals from FM and CSA, rated for operation within systems with requirements up to SIL 3 and PL e.

Key features include:

• Maximum operating pressure: 500 mbar
• Available sizes: 1 to 9; nominal diameters (DN): 10 to 125
• Connection types: threaded or flanged
• Operation modes: quick opening/quick closing or slow opening/quick closing
• Mains voltage options: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Additional versions available with position indicator, visual indicator, fitted bypass/pilot gas valve, or integrated pressure switches
