Solenoid Gas Safety Valve - 500 mbar, IP65, EN 161, Class A, VCS Series

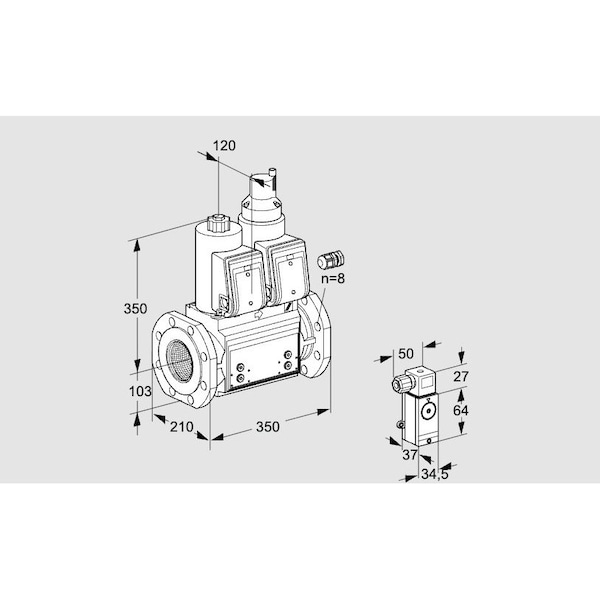

The HONEYWELL KROMSCHRODER VCS8100F05NLWR3B/PPPP/P2MP is a Class A solenoid gas safety valve intended for use as an automatic shut-off valve in gas and air systems. It operates with a maximum pressure of 500 mbar and is configured to be closed when not energized. The unit features a pilot lamp, flow adjustment, and an IP65-rated enclosure. This model meets EN 161 standards and holds EU certification as well as FM and CSA approvals. It has been evaluated according to SIL 3 and PL e requirements.

Key features include:

• Size range: 1 to 9; DN (nominal diameter): 10 to 125
• Connection options: threaded or flanged
• Operation types: quick opening/quick closing or slow opening/quick closing
• Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions include models with position indicator, visual indicator, fitted bypass or pilot gas valve, and fitted pressure switches DG../VC
