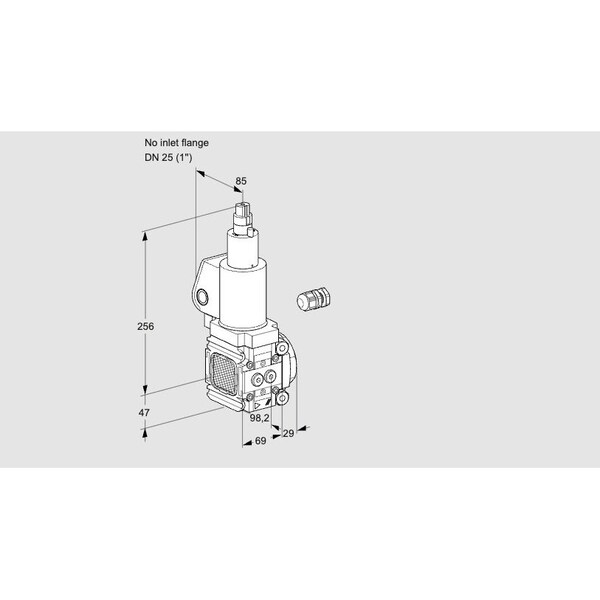

Solenoid Gas Safety Valve - Class A, 500 mbar, IP65, EN 161 Compliant

The HONEYWELL KROMSCHRODER VAS2-/25R/LWSL is a Class A solenoid gas safety valve intended for use in automatic shut-off applications. This valve compliant with EN 161 standards and is normally closed (de-energized state). It is rated for operation with gas and air at pressures up to 500 mbar, includes a pilot lamp and adjustable flow settings. The unit has an IP65 ingress protection rating, holds EU certification, FM and CSA approvals, and is certified for systems up to SIL 3 and PL e.

Key features include:

• Size range: 1 to 9; nominal diameter (DN): 10 to 125
• Connection options: threaded or flanged
• Opening/closing modes: quick opening/quick closing or slow opening/quick closing
• Compatible with mains voltages of 24 V DC, 120 V AC, or 230 V AC
• Electrical connection through terminal block
• Available versions include models equipped with visual position indicators, fitted bypass/pilot gas valves, or integrated pressure switches DG../VC
