Solenoid Gas Safety Valve - Class A, 500 mbar, IP65 Rated

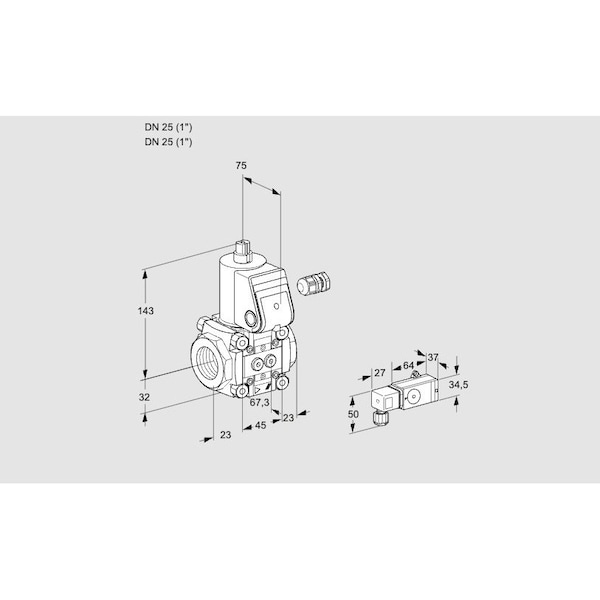

The HONEYWELL KROMSCHRODER VAS125R/NW is a Class A solenoid gas safety valve intended for use as a shut-off valve in gas and air systems. It compliant with EN 161 standards, rated for a maximum operating pressure of 500 mbar. The unit includes pilot lamp and adjustable flow settings, with an IP65 enclosure rating. It is certified by EU, FM, and CSA authorities and is certified up to SIL 3 (Safety Integrity Level) and PL e (Performance Level).

Key features include:

• Size range: 1 to 9
• Nominal diameter (DN): 10 to 125
• Connection options: threaded or flanged
• Operation types: quick opening/quick closing or slow opening/quick closing
• Mains voltage options: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available with optional position indicator, visual indicator, bypass/pilot gas valve, or pressure switches
