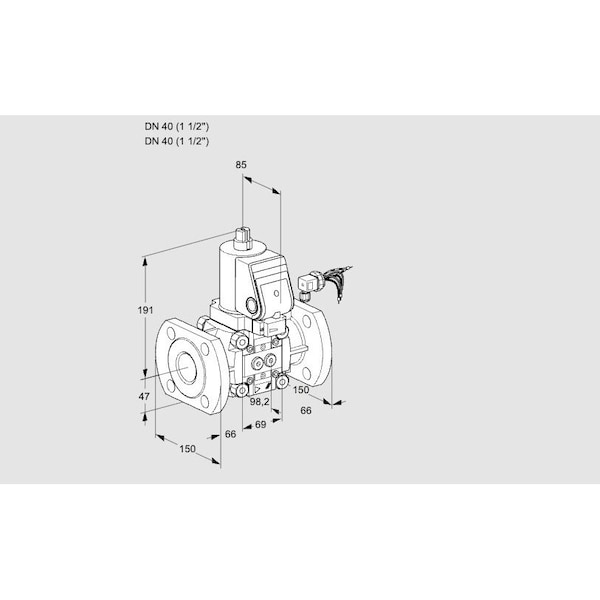

Solenoid Gas Safety Valve - Class A, 500 mbar, IP65 Rated

The HONEYWELL KROMSCHRODER VAS 240F/NWGR is a Class A solenoid gas safety valve intended for use as an automatic shut-off component in gas and air systems. It compliant with EN 161 standards, remains closed when de-energized, and is rated for a maximum operating pressure of 500 mbar. The unit includes a pilot lamp and adjustable flow settings, with an IP65 rating for ingress protection. It is certified by EU, FM, and CSA authorities and suitable for installation in systems requiring SIL 3 or PL e.

Key features include:

• Size range: 1 to 9; nominal diameter (DN): 10 to 125
• Connection options: threaded or flanged
• Opening/closing operation: quick opening/quick closing or slow opening/quick closing
• Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions include models with position indicators (visual), fitted bypass/pilot gas valves, or integrated pressure switches
