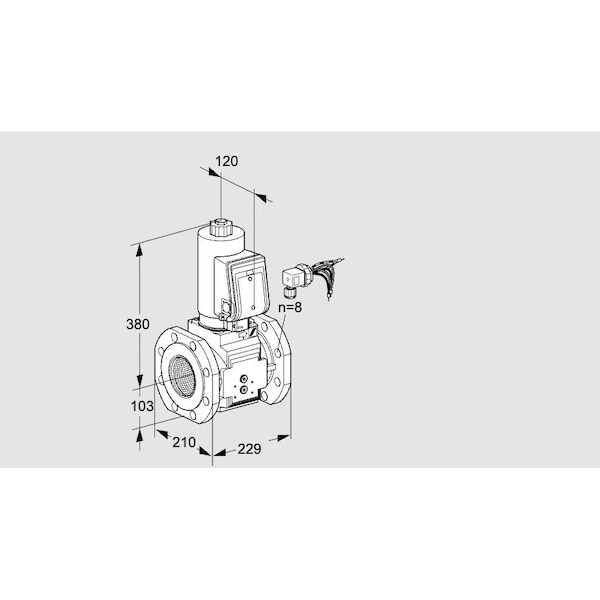

Solenoid Gas Safety Valve – Class A, 500 mbar, IP65 Rated

The HONEYWELL KROMSCHRODER VAS8100F05NKGRB/PP/PP is a Class A solenoid gas safety valve intended for use as an automatic shut-off component in gas and air systems. The valve remains closed when de-energized and features a pilot lamp and flow adjustment. It operates at a maximum pressure of 500 mbar, rated to IP65 ingress protection standards, and certified according to applicable EU, FM, and CSA requirements. This model is certified for use in systems up to SIL 3 and PL e.

Key features include:

• Size range: 1 to 9; DN (nominal diameter): 10 to 125
• Connection options: threaded or flanged
• Opening/closing types: quick opening with quick closing or slow opening with quick closing
• Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions include models with position indicator, visual indicator, fitted bypass/pilot gas valve, or integrated pressure switches
