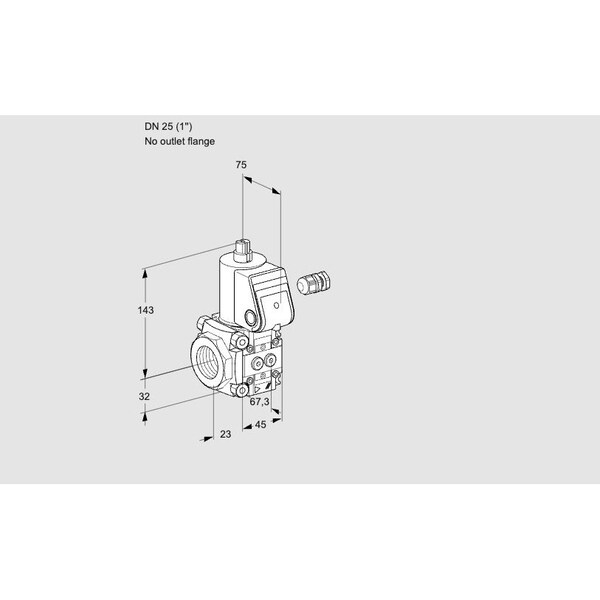

Solenoid Gas Safety Valve - Class A, 500 mbar, IP65, SIL 3
Mfr # KS88016251
Zoro # G615413346
Specifications
Product Information
Description
The HONEYWELL KROMSCHRODER VAS125/-R/NY is a Class A solenoid gas safety valve. This valve is intended for use as an automatic shut-off component in gas and air systems, according to manufacturer specifications. The valve is configured to be closed when not energized, per design specifications, and features a maximum operating pressure of 500 mbar. It includes a pilot lamp, includes a mechanism for adjusting flow within specified parameters, and has an IP65-rated enclosure. The unit is certified to EU standards as well as FM and CSA approvals, with certification for application in systems requiring compliance with SIL 3 and PL e standards.
Key features:
- Size range: 1 to 9; DN (nominal diameter): 10 to 125
- Connection options: threaded or flanged
- Opening/closing action: quick opening/quick closing or slow opening/quick closing
- Mains voltage options: 24 V DC, 120 V AC, or 230 V AC
- Electrical connection via terminal block
- Available versions include models with position indicator, visual indicator, fitted bypass/pilot gas valve, or integrated pressure switches
