Solenoid Gas Safety Valve – VAS-VCS, Class A, 500 mbar, EN 161 Certified

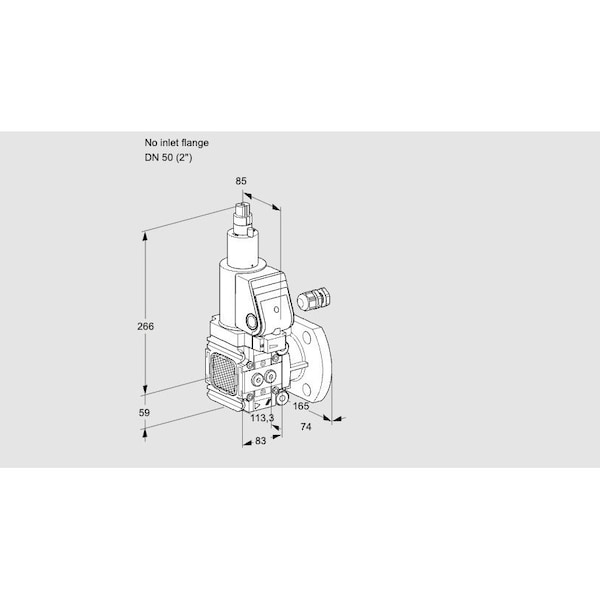

The HONEYWELL KROMSCHRODER VAS3-/50F/LWSR is a Class A solenoid gas safety valve intended for use in applications requiring automatic shut-off of gas and air lines. The valve is configured to be closed in a de-energized state and features a pilot lamp and flow adjustment. It is certified to EN 161 standards, with a maximum operating pressure of 500 mbar, and holds EU certification as well as FM and CSA approvals. The unit is rated IP65 for ingress protection and is compatible with systems rated up to SIL 3 and PL e.

Key features include:

• Size range: 1 to 9; DN (nominal diameter): 10 to 125
• Connection options: threaded or flanged
• Operation types: quick opening/quick closing or slow opening/quick closing
• Mains voltage options: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal
• Available versions with position indicator, visual indicator, fitted bypass/pilot gas valve, or fitted pressure switches DG../VC
