Solenoid Gas Safety Valve – VAS-VCS, Class A, 500 mbar, IP65 Rated

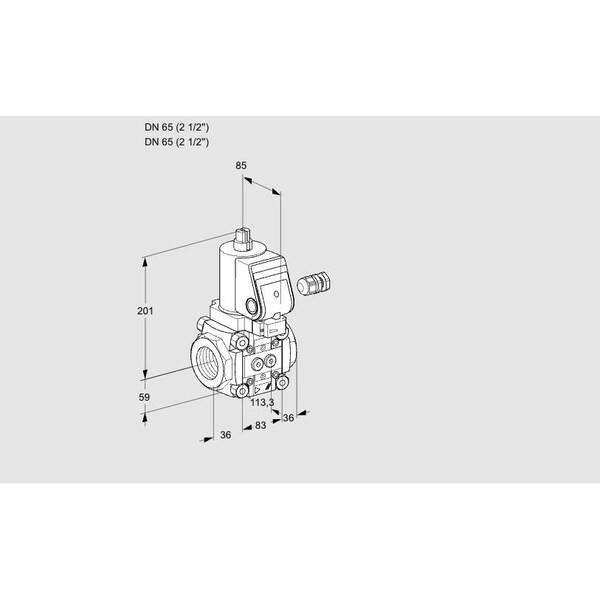

The HONEYWELL KROMSCHRODER VAS365R/NWSR is a Class A solenoid gas safety valve intended for use as an automatic shut-off valve in gas and air systems. It is rated for operation in accordance with EN 161 standards, remains closed when not energized, and has a maximum operating pressure rating of 500 mbar. The unit includes an integrated pilot lamp and flow adjustment, with an IP65 rating for ingress protection. It is certified under EU, FM, and CSA standards and has certification ratings up to SIL 3 and PL e.

Key features include:

• Size range: 1 to 9
• Nominal diameter (DN): 10 to 125
• Connection options: threaded or flanged
• Opening/closing types: quick opening/quick closing or slow opening/quick closing
• Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions include models with position indicators (visual), fitted bypass or pilot gas valves, and fitted pressure switches DG../VC
