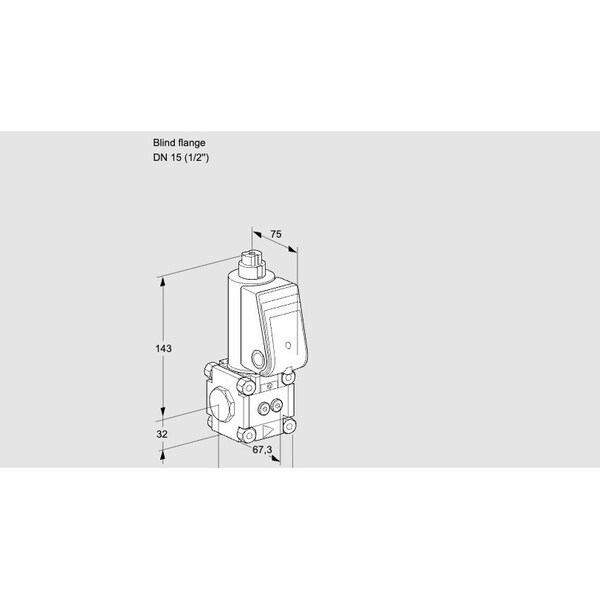

Solenoid Gas Safety Valve – VAS-VCS, Class A, 500 mbar, IP65 Rated

The HONEYWELL KROMSCHRODER VAS1-0/15R/NW is a Class A solenoid gas safety valve intended for use in applications requiring the shut-off of gas and air. It operates according to EN 161 standards, remains in a closed position when not energized, with a maximum operating pressure of 500 mbar. The unit features an integrated pilot lamp and flow adjustment capability, and has an ingress protection rating of IP65. This model holds certification according to SIL 3 and PL e standards, as well as EU certification, FM, and CSA approvals.

Key features include:

• Size range: 1 to 9
• Nominal diameter (DN): 10 to 125
• Connection options: threaded or flanged
• Opening/closing types: quick opening & closing or slow opening & quick closing
• Mains voltage options: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions with position indicator, visual indicator, fitted bypass/pilot gas valve, or fitted pressure switches
