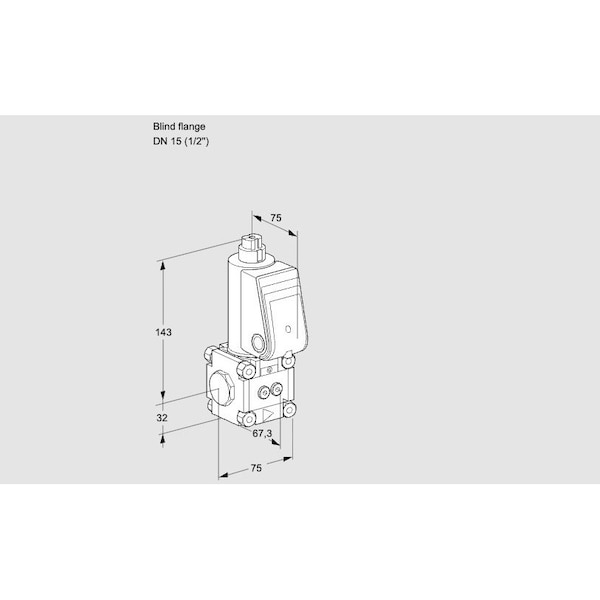

Solenoid Gas Safety Valve - VAS1-0/15R/NW, 500 mbar, IP65, Class A

The HONEYWELL KROMSCHRODER VAS1-0/15R/NW is a Class A solenoid gas safety valve intended for use as an automatic shut-off component in gas and air systems. The valve remains closed when de-energized and is rated for a maximum operating pressure of 500 mbar. It is equipped with a pilot lamp, flow adjustment mechanism, and IP65-rated enclosure. This model is certified to applicable EU standards; holds FM and CSA certifications, with suitability for use in systems up to SIL 3 or PL e.

Key features include:

• Size range: 1 to 9
• Nominal diameter (DN): 10 to 125
• Connection options: threaded or flanged
• Operation types: quick opening/quick closing or slow opening/quick closing
• Mains voltage options: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions with position indicator, visual indicator, fitted bypass/pilot gas valve, or fitted pressure switches
