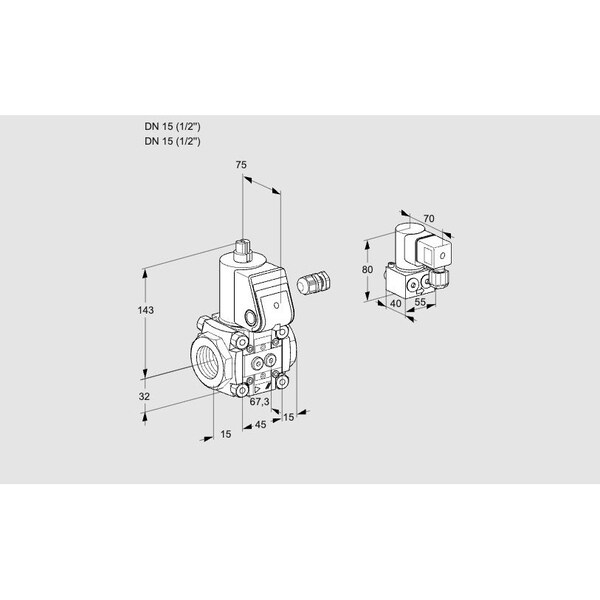

Solenoid Gas Safety Valve - VAS115R/NW, Class A, 500 mbar, IP65

The HONEYWELL KROMSCHRODER VAS115R/NW is a Class A solenoid gas safety valve. It is intended for use in gas and air systems with automatic shut-off functionality. It is rated for operation in accordance with EN 161 standards, remaining closed when not energized, and supports a maximum operating pressure: 500 mbar. The unit includes pilot lamp and adjustable flow features, with an IP65 rating for ingress protection. This model is EU certified, FM and CSA approved, and certified as meeting requirements applicable to SIL 3 and PL e.

Key features include:

• Size range: 1 to 9; DN (nominal diameter): 10 to 125
• Connection options: threaded or flanged
• Operation types: quick opening/quick closing or slow opening/quick closing
• Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions with position indicator, visual indicator, fitted bypass/pilot gas valve, or fitted pressure switches DG../VC
