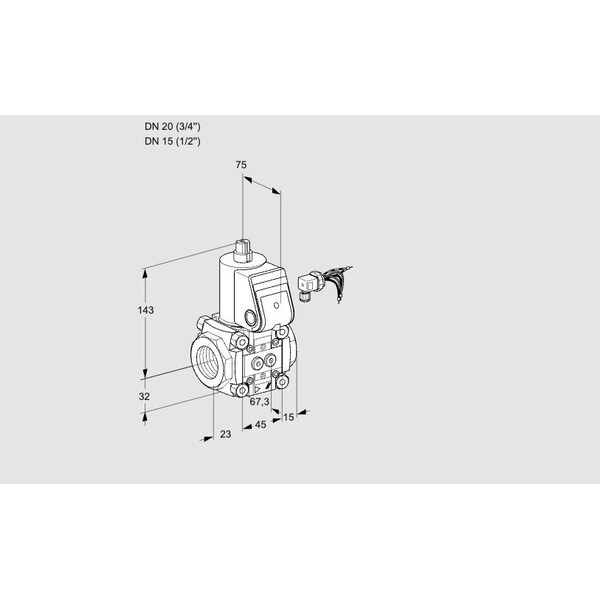

Solenoid Gas Safety Valve – VAS120/15R/NW, 500 mbar, IP65, EN 161

The HONEYWELL KROMSCHRODER VAS120/15R/NW is a Class A solenoid gas safety valve intended for use as an automatic shut-off valve in gas and air systems. The valve is configured to be closed when not energized and features a pilot lamp and flow adjustment. It is certified according to EN 161 standards; approved by FM and CSA; suitable for applications requiring compliance with SIL 3 or PL e where applicable certifications are recognized.

Key features include:

• Maximum operating pressure: 500 mbar
• Protection rating: IP65
• Size range: 1 to 9; DN (nominal diameter): 10 to 125
• Connection options: threaded or flanged
• Opening/closing types: quick opening/quick closing or slow opening/quick closing
• Mains voltage options: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions include models with position indicators, visual indicators, fitted bypass/pilot gas valves, or integrated pressure switches
