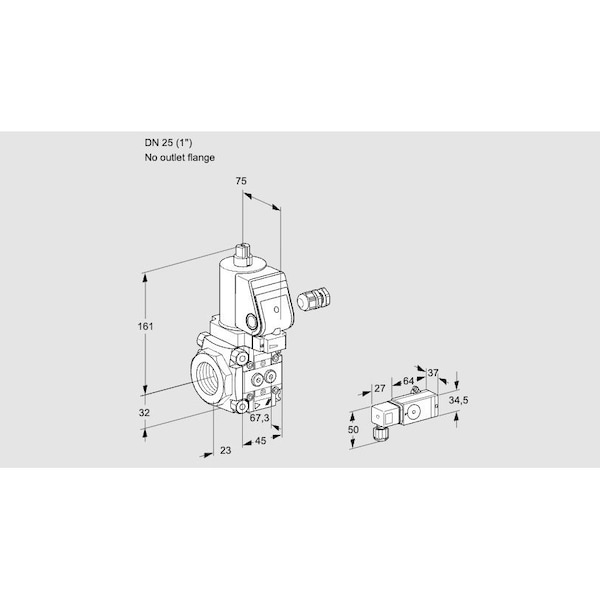

Solenoid Gas Safety Valve - VAS125, 500 mbar, IP65, EN 161 Certified

The HONEYWELL KROMSCHRODER VAS125/-R/NKGR is a Class A solenoid gas safety valve intended for use as an automatic shut-off valve in gas and air systems. The valve is configured to be closed when not energized and features a pilot lamp and flow adjustment. It is certified to EN 161 standards, with approvals from FM and CSA, as well as certification for use in systems up to SIL 3 and PL e. The unit has an IP65 rating for ingress protection.

Key features include:

• Maximum operating pressure: 500 mbar
• Size range: 1 to 9; DN (nominal diameter): 10 to 125
• Connection options: threaded or flanged
• Opening/closing modes: quick opening/quick closing or slow opening/quick closing
• Mains voltage options: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions with position indicator, visual indicator, fitted bypass/pilot gas valve, or fitted pressure switches
