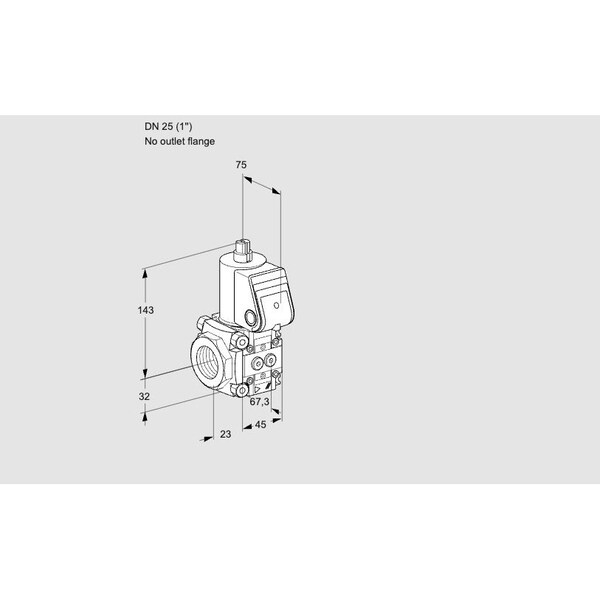

Solenoid Gas Safety Valve – VAS1T25, 500 mbar, IP65, Auto Shut-Off

The HONEYWELL KROMSCHRODER VAS1T25/-N/NK is a Class A solenoid gas safety valve intended for use as an automatic shut-off component in gas and air systems. The valve is configured to be closed when not energized and features a pilot lamp and flow adjustment capability. It is suitable for use with maximum operating pressures up to 500 mbar, rated to IP65 ingress protection standard, and certified according to applicable EU, FM, and CSA standards. The unit is compliant with requirements for SIL 3 and PL e system ratings.

Key features include:

• Size range: 1 to 9; DN (nominal diameter): 10 to 125
• Connection options: threaded or flanged
• Operation types: quick opening/quick closing or slow opening/quick closing
• Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions with position indicator, visual indicator, fitted bypass/pilot gas valve, or pressure switches
