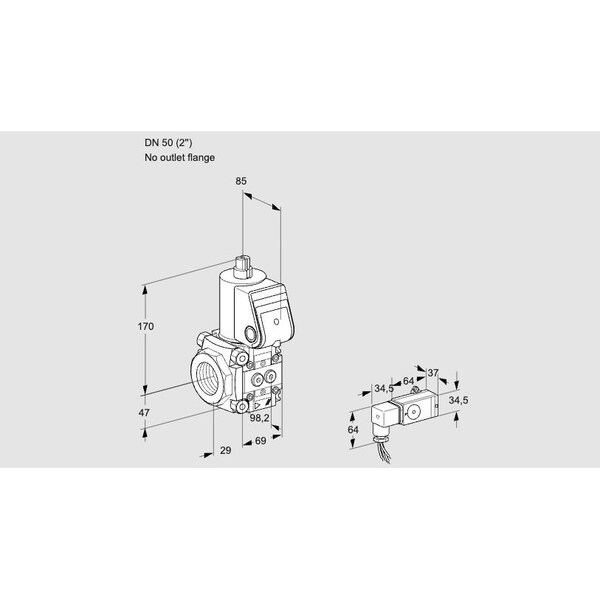

Solenoid Gas Safety Valve - VAS2T50, 500 mbar, IP65, Class A

The HONEYWELL KROMSCHRODER VAS2T50/-N/NK is a Class A solenoid gas safety valve intended for use as an automatic shut-off valve in gas and air systems. When de-energized, the valve is in a closed position and supports a maximum operating pressure of 500 mbar. It features a pilot lamp, flow adjustment capability, and an IP65 enclosure rating. This model is certified to EU standards, FM, CSA, SIL 3, and PL e requirements.

Key features include:

• Size range: 1 to 9; DN (nominal diameter): 10 to 125
• Connection options: threaded or flanged
• Opening/closing types: quick opening with quick closing or slow opening with quick closing
• Mains voltage options: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions include models with position indicators (visual), fitted bypass/pilot gas valves, and integrated pressure switches
