Solenoid Gas Safety Valve – VCS Series, 500 mbar, Class A, IP65 Rated

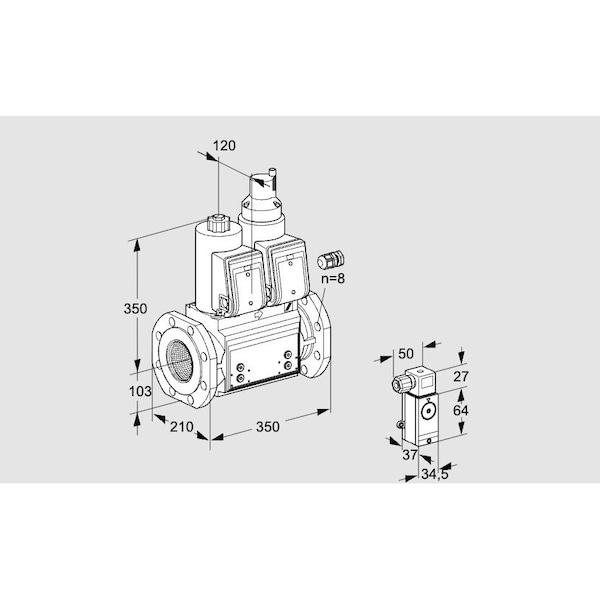

The HONEYWELL KROMSCHRODER VCS8100F05NLWR3B/PPPP/2-P4 is a Class A solenoid gas safety valve intended for use as an automatic shut-off component in gas and air systems. It operates with a maximum pressure of 500 mbar and is configured to be closed when not energized. The unit features flow adjustment, an integrated pilot lamp, and meets EN 161 standards. It holds EU certification as well as FM and CSA approvals, suitable for integration into systems with requirements up to SIL 3 and PL e.

Key features include:

• Size range: 1 to 9; DN (nominal diameter): 10 to 125
• Connection options: threaded or flanged
• Opening/closing types: quick opening & closing or slow opening & quick closing
• Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• IP65 rated enclosure for ingress protection
• Available versions include models with position indicators, visual indicators, fitted bypass/pilot gas valves, or fitted pressure switches
