Solenoid Gas Safety Valve – VCS Series, 500 mbar, IP65, Class A, EN 161

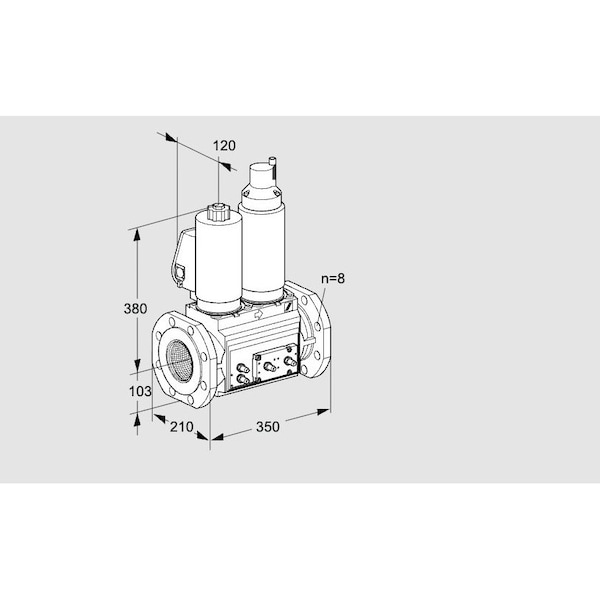

The HONEYWELL KROMSCHRODER VCS8T100A05NLQGLE/MMMM/MMVM is a Class A solenoid gas safety valve intended for use in applications requiring automatic shut-off in gas and air systems. The valve remains closed when de-energized and is rated for a maximum operating pressure of 500 mbar. It is equipped with an integrated pilot lamp, flow adjustment capability, and an IP65-rated enclosure. This model meets EN 161 standards and holds EU certification as well as FM and CSA approvals. It is certified for use in systems up to SIL 3 and PL e.

Key features include:

• Size range: 1 to 9; DN (nominal diameter): 10 to 125
• Connection options: threaded or flanged
• Opening/closing types: quick opening/quick closing or slow opening/quick closing
• Compatible with mains voltages of 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available with optional position indicator, visual indicator, fitted bypass/pilot gas valve, or fitted pressure switches DG../VC
