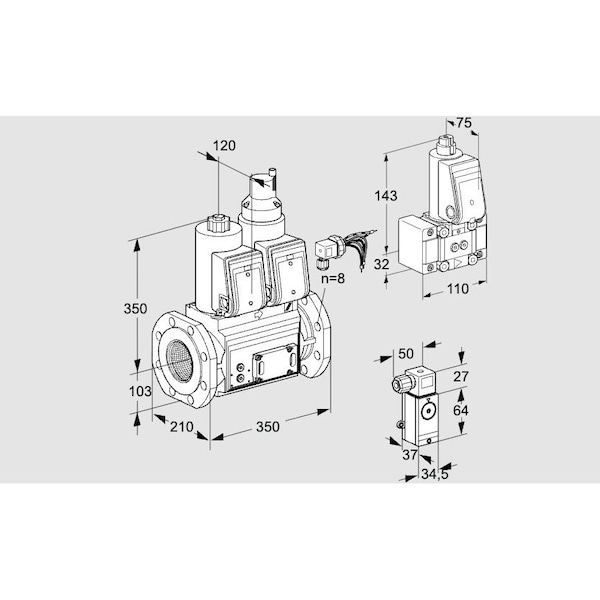

Solenoid Gas Safety Valve – VCS Series, 500 mbar, IP65, Class A

The HONEYWELL KROMSCHRODER VCS8100F05NLWRE/PPB-/P3PP is a Class A solenoid gas safety valve intended for use as an automatic shut-off component in gas and air systems. The valve remains closed when de-energized and rated for operation up to a maximum pressure of 500 mbar. It features a pilot lamp, flow adjustment capability, and an IP65-rated enclosure. This model is certified according to applicable EU, FM, and CSA standards, with compatibility with systems requiring SIL 3 or PL e.

Key features include:

• Size range: 1 to 9; nominal diameter (DN): 10 to 125
• Connection options: threaded or flanged
• Operation modes: quick opening/quick closing or slow opening/quick closing
• Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions with position indicator, visual indicator, fitted bypass/pilot gas valve, or fitted pressure switches
