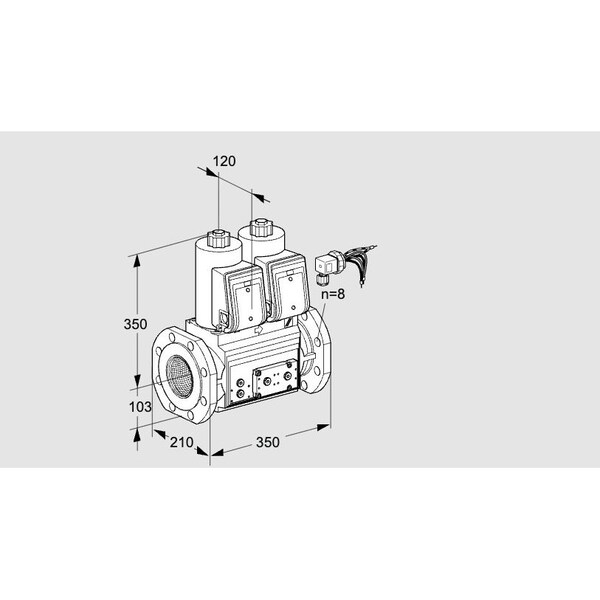

Solenoid Gas Safety Valve – VCS Series, Class A, IP65, Flow Adjustment

The HONEYWELL KROMSCHRODER VCS8100F05NNQRE/PPPP/PPPP is a Class A solenoid gas safety valve intended for use as an automatic shut-off valve in gas and air lines. It features flow adjustment, an integrated pilot lamp, and is constructed to meet IP65 ingress protection requirements. The unit holds certifications including relevant EU, FM, and CSA approvals, with assessment according to SIL 3 and PL e system compatibility criteria.

Key features include:

• Size range: 1 to 9; DN (nominal diameter): 10 to 125
• Connection options: threaded or flanged
• Opening/closing action: quick opening & closing or slow opening & quick closing available
• Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions include models with position indicator, visual indicator, fitted bypass/pilot gas valves, or fitted pressure switches
