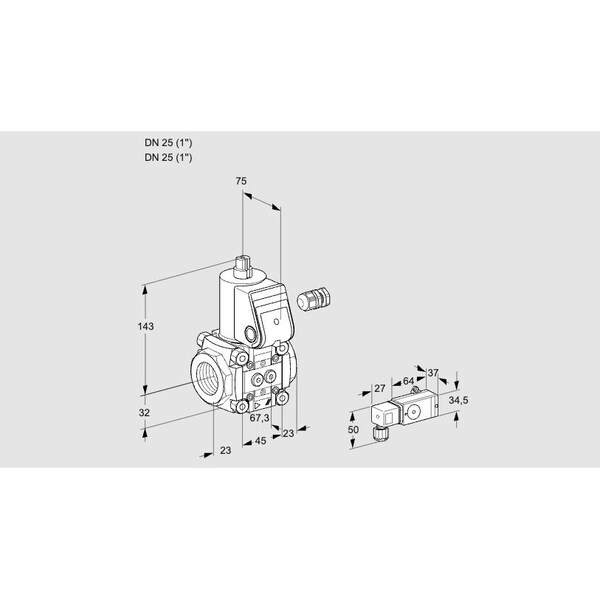

Solenoid Gas Valve - VAS125R/NW, Auto Shut-Off, 500 mbar, IP65

The HONEYWELL KROMSCHRODER VAS125R/NW is a Class A solenoid gas valve intended for use in applications requiring automatic shut-off in gas and air systems. It operates according to EN 161 standards, remaining closed when de-energized, and is suitable for use with maximum operating pressures up to 500 mbar. The unit features a pilot lamp and flow adjustment capabilities, has an IP65 enclosure rating, and holds certification according to SIL 3 and PL e standards. It is certified for use in systems rated up to SIL 3 and PL e.

Key features include:

• Size range: 1 to 9
• Nominal diameter (DN): 10 to 125
• Connection options: threaded or flanged
• Operation types: quick opening/quick closing or slow opening/quick closing
• Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions include models with position indicators (visual), fitted bypass or pilot gas valves, and fitted pressure switches DG../VC
