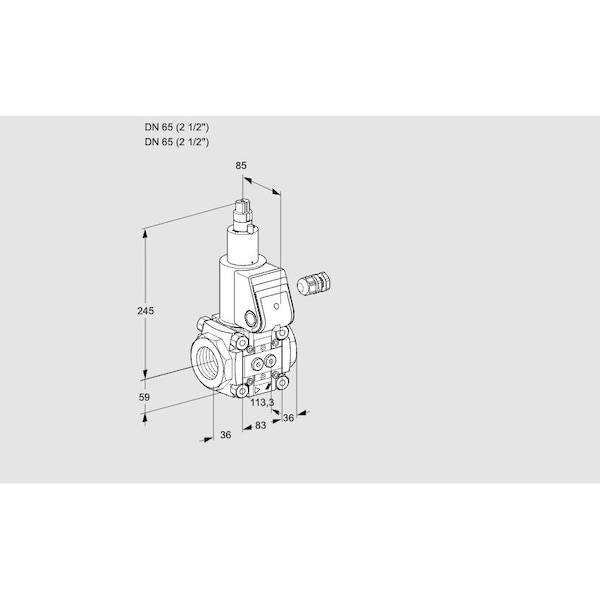

Solenoid Gas Valve - VAS3T65N/LQ, Class A, 500 mbar, IP65 Rated

The HONEYWELL KROMSCHRODER VAS3T65N/LQ is a Class A solenoid gas valve intended for use with automatic shut-off functions in gas and air systems. It operates with a closed position when de-energized and supports maximum operating pressure up to 500 mbar. The unit features an integrated pilot lamp, flow adjustment, and is rated IP65 for ingress protection. This valve is certified according to applicable EU, FM, and CSA standards, and it holds certifications indicating suitability for applications requiring SIL 3 or PL e.

Key features include:

• Size range: 1 to 9; DN (nominal diameter): 10 to 125
• Connection options: threaded or flanged
• Operation types: quick opening/quick closing or slow opening/quick closing
• Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions with position indicator, visual indicator, fitted bypass/pilot gas valve, or fitted pressure switches
