Solenoid-Operated Butterfly Valve, DN 40–100, 450°C Max Temp, MB 7/BVHM

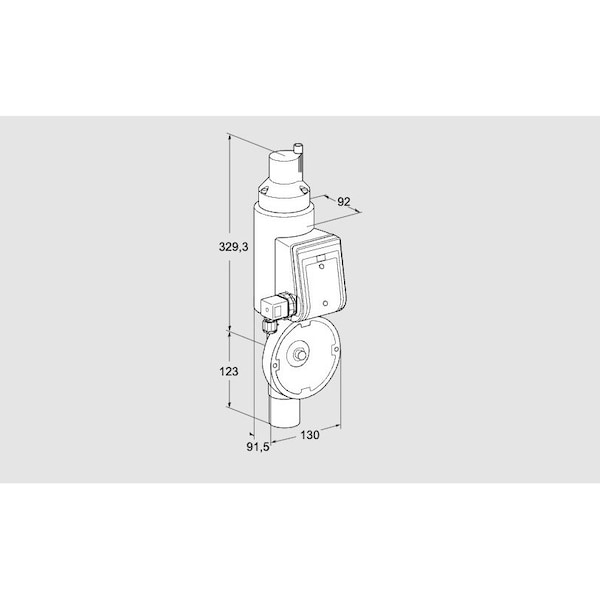

The HONEYWELL KROMSCHRODER ACT,SOLND, BVHM,MB 7LW6 is a solenoid actuator and butterfly valve assembly intended for use with industrial burners within specified temperature ranges. This unit combines the MB 7 series solenoid actuator with the BVHM butterfly valve to facilitate flow regulation between two flanges. It is rated for operation at temperatures up to 450°C and is compatible with nominal diameters (DN) from 40 to 100.

Key features include:

• Maximum operating temperature: up to 450°C
• Nominal diameter range: DN 40–100
• Installation: fits between two flanges
• Maximum pressure (pu): 150 mbar
• Spring-loaded valve disc with position indicator
• Actuator types: MB 7N (quick opening/closing), MB 7R (slow opening/closing), MB 7L (slow opening/quick closing)
• Control options: High/Low or On/Off depending on model variant
• Mains voltage options: 24 V DC, 120 V AC, or 220/240 V AC
• Electrical connection via terminals or standard plug/socket
