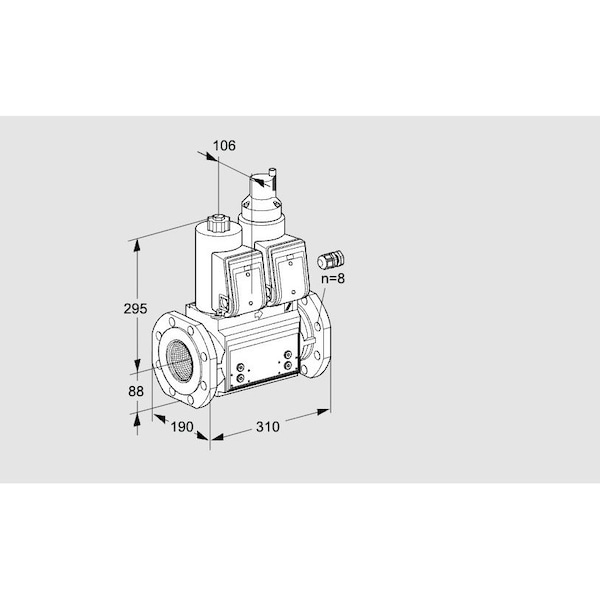

Solenoid Valve - Double, 80mm Flange, 500 mbar, IP65 Rated

The HONEYWELL KROMSCHRODER VCS780F05NLK is a solenoid valve intended for use in applications requiring the control of gas and air flow. This double solenoid valve features an 80 mm ISO flange connection and is compliant with EN 161 Class A standards, remaining in a closed position when not energized. It is rated for a maximum operating pressure of 500 mbar and equipped with pilot lamp status indicator and integrated flow adjustment functionality. The unit is rated IP65 for ingress protection and certified by EU, FM, and CSA.

Key features:

• Double solenoid design with quick or slow opening options
• Flange connection size: 80 mm (ISO standard)
• Rated for a maximum operating pressure of 500 mbar
• Electrical connections via terminal; available in multiple mains voltages (24 V DC, 120 V AC, or 230 V AC)
• Equipped with pilot lamp status indicator and integrated flow adjustment functionality
• Certified up to SIL 3 and PL e levels
