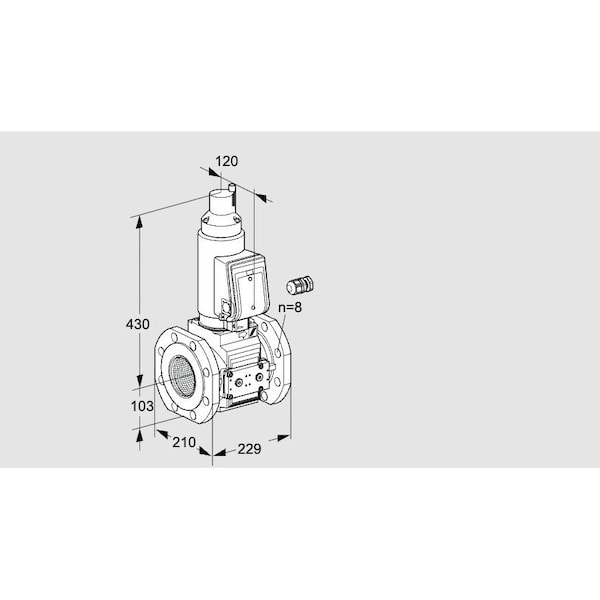

Solenoid Valve for Gas, 100mm ISO Flange, 500 mbar, IP65, VAS8100F0
Mfr # KS88204263
Zoro # G815296138
Specifications
Product Information
Details
Description
The HONEYWELL KROMSCHRODER VAS8100F0 is a solenoid valve intended for use in applications requiring the control of gas and air flow. Classified as a Class A valve to EN 161 standards, it is normally closed (de-energized state) and rated for operation at pressures up to 500 mbar. This model features an ISO flange connection with a nominal size of 100 mm (size 8), includes a pilot lamp, flow adjustment capability, and offers IP65 ingress protection. It holds EU certification as well as FM and CSA approvals, and is certified according to SIL 3 and PL e standards.
Key features:
- Size: 8 (DN: 100 mm)
- Connection type: ISO flange
- Maximum pressure: 500 mbar
- Operating voltage options: 24 V DC, 120 V AC, or 230 V AC
- Electrical connection via terminal
- Quick opening/closing or slow opening/quick closing operation available
- Includes pilot lamp and flow adjustment functions
- Protection rating: IP65
- Certified according to SIL 3 and PL e standards; EU certified; FM & CSA approved
