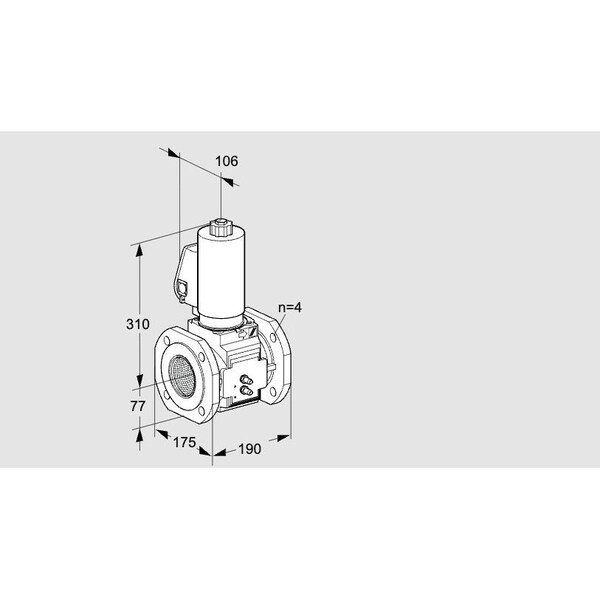

Solenoid Valve for Gas, 2-1/2" ANSI Flange, VAS6T65A0, Class A
Mfr # KS88203064
Zoro # G315296263
Specifications
Product Information
Details
Description
The HONEYWELL KROMSCHRODER VLV ASSY, SOLND, 2 1/2 ANSI FLG, VAS6T65A0 is a solenoid valve intended for use in applications requiring the control of gas and air flow. Classified as a Class A valve to EN 161 standards, it is normally closed (de-energized state) and includes pilot lamp indicator and adjustable flow components. The unit supports a maximum operating pressure of 500 mbar and has an ingress protection rating of IP65 according to IEC 60529. It holds EU certification as well as FM and CSA approvals, with may be used in systems with requirements up to SIL 3 or PL e, subject to proper system integration.
Key features include:
- Size range: DN 10 to DN 125
- Connection type: Thread or flange (ANSI flange on this model)
- Operation: Quick opening/closing or slow opening/quick closing options
- Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
- Electrical connection via terminal block
- Available versions include position indicator with visual display, fitted bypass/pilot gas valves, or integrated pressure switches
