Shop ZOELLER

Silent Combo Swing Check Valve 2"

  • Mfr # 30-0236

  • Zoro # G3647795

product price:
$
58.59
/ea

Key Features

Pipe Size
2"
Connection Type
Solvent Weld
Connection
Solvent
Body Material
PVC
Spring Material - Check Valves
Stainless Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
30-0236
Zoro #
G3647795
UPC #
053514308377
Country of Origin
United States
Connection Type
Solvent Weld
Connection
Solvent
Body Material
PVC
Spring Material - Check Valves
Stainless Steel
Mounting Position
Vertical or Horizontal
Body Material - Valves
PVC
Mechanism and Body Design
Inline Swing
Flow
Not Rated
Max. Temp. - Valves
130 Degrees F
Max. Pressure
50 psi
Seal Material - Check Valves
Rubber
Material of Construction
PVC
Connection Type - Check Valves
Solvent Weld x Solvent Weld
Spring Material
Stainless Steel
Flow Design
Single
Max. Steam Pressure - Valves
Not Rated
Seat Material
PVC
Item
Check Valve with Ball Valve
Seal Material
Rubber
Max. Water Pressure - Valves
50 psi @ 130 Degrees F
Cap to Inlet Center
3 1/2 in
Mounting Orientation - Check Valves
Horizontal, Vertical
Max. Temp.
130 Degrees F
Application - Valves
Pumps
Seat Material - Check Valves
PVC
Full Flow - Valves
Yes
Item - Check Valves
Check Valve
Sub-Category
PVC
Cracking Pressure
1 psi
Mounting Orientation
Horizontal, Vertical
Seal
Buna N
Type
Check and Ball Combination
Connection Type - Side 1
Socket
Includes Counterweight
Counterweight Included
Connection Gender - Side 1
Female
Connection Type - Side 2
Socket
Check Mechanism
Swing
Vacuum Service Rating
Not Rated
3-A Standard Compliance
Not Rated
Silent Check
Silent
Coefficient of Volume (Cv)
Not Rated
Maximum Pressure - Operating
50 psi
Maximum Pressure - Steam
Not Rated
NSF Certifications for Food and Drinking Water
Not Rated
Valve Body Style
Inline
Check Mechanism Material
PVC
Connection Gender - Side 2
Female
Operating Temperature - Maximum
130 Degrees F
Operating Temperature - Minimum
75 Degrees F
For Media
Water

Description

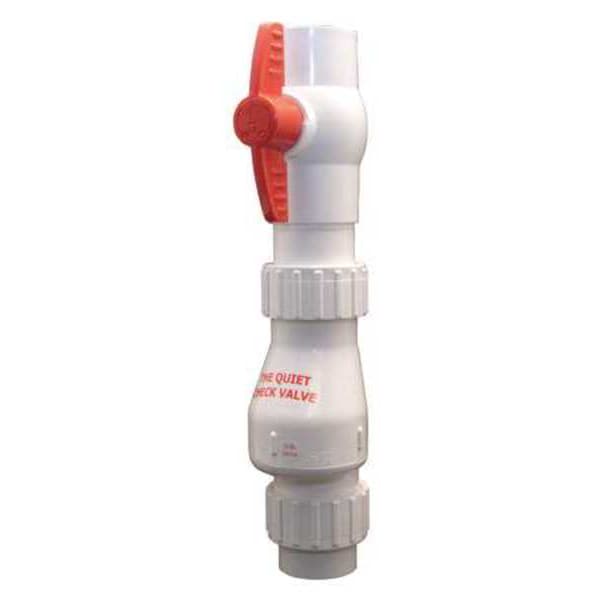

ZOELLER 30-0236 is a 2 in inline swing check valve with ball valve for water service in pump systems. It uses a swing check mechanism to allow one-way flow and help block reverse flow. The silent check design and PVC body, PVC seat, Buna N seal, and stainless steel spring provide the listed material construction for solvent-weld piping systems.

Key Features:

  • 2 in nominal valve size with 2 in socket connections on both ends
  • Connection type: Solvent Weld x Solvent Weld
  • Inline swing body design with single flow path
  • Type: Check and Ball Combination
  • Body material: PVC
  • Check mechanism material: PVC
  • Seat material: PVC
  • Seal material: Rubber
  • Seal: Buna N
  • Spring material: Stainless Steel
  • For media: Water
  • Application: Pumps
  • Full flow: Yes
  • Cracking pressure: 1 psi
  • Maximum pressure: 50 psi
  • Maximum water pressure: 50 psi at 130 Degrees F
  • Maximum operating temperature: 130 Degrees F
  • Mounting orientation: Horizontal or Vertical
  • Overall length: 16.13 in
  • Overall height: 5 in
  • Width: 5 in
  • Silent check: Yes
  • Includes counterweight
