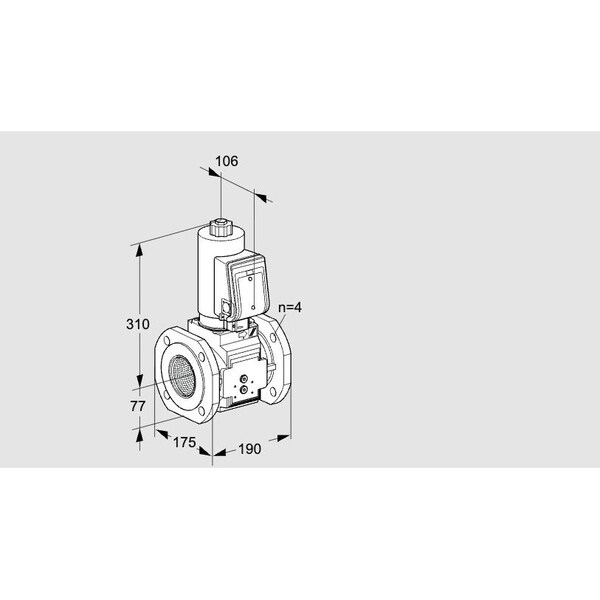

Solenoid Valve for Gas, 2-1/2" ANSI Flanged, 500 mbar Max Pressure

The HONEYWELL KROMSCHRODER VLV ASSY, SOLND, 2 1/2 ANSI FLGD K/S VAS6T is a solenoid valve intended for use in applications requiring the control of gas and air flow. This valve is configured to be in a closed position when not energized. It features an ANSI flanged connection and supports a maximum operating pressure of 500 mbar. The unit includes pilot lamp and flow adjustment capability.

Key features:

• Valve type: Solenoid Valve
• Connection: Flanged (ANSI)
• Maximum operating pressure: 500 mbar
• Electrical protection rating: IP65
• Certifications: EU certified, FM approved, CSA approved
• Voltage options available: 24 V DC, 120 V AC, or 230 V AC
• Operation modes: Quick opening/closing or slow opening/quick closing
• Additional options include position indicator with visual display, fitted bypass or pilot gas valve, and integrated pressure switches
