Solenoid Valve for Gas, Class A, 500 mbar, IP65, EN 161 Certified

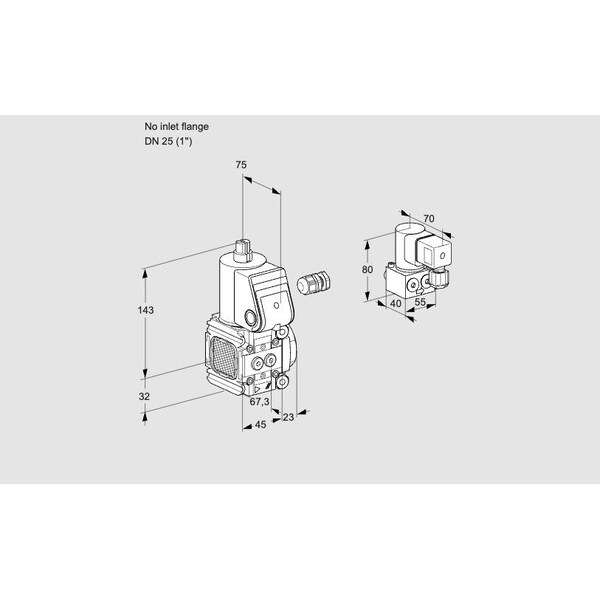

The HONEYWELL KROMSCHRODER VAS1-/25R/NW is a Class A solenoid valve intended for use in applications requiring automatic shut-off of gas and air. It operates in accordance with EN 161 standards and is configured to be closed when not energized. This valve supports a maximum operating pressure of 500 mbar, includes adjustable flow settings, and is equipped with a pilot lamp that indicates operational status. The unit is rated IP65 for ingress protection and certified according to EU, FM, and CSA requirements.

Key features include:

• Size range: 1 to 9; nominal diameter (DN): 10 to 125
• Connection options: threaded or flanged
• Opening/closing types: quick opening/quick closing or slow opening/quick closing
• Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available in models offering position indicators, visual indicators, bypass/pilot gas valves, or integrated pressure switches (DG../VC)
• Certified as meeting the requirements for systems up to SIL 3 and PL e
