Solenoid Valve for Gas, Class A, 500 mbar, IP65 Rated

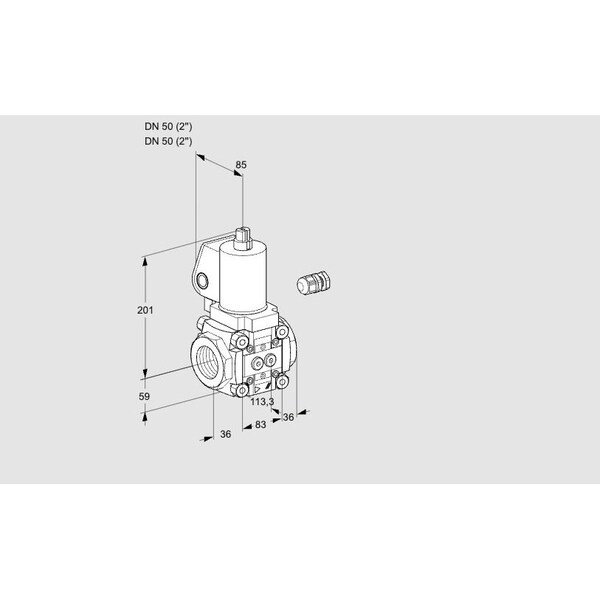

The HONEYWELL KROMSCHRODER VAS350R/NKGL is a Class A solenoid valve. It is intended for use in applications requiring automatic shut-off of gas and air lines. The unit conforms to EN 161 standards, is closed when not energized, rated for a maximum operating pressure of 500 mbar, and features include pilot lamp and flow adjustment. This model holds certification meeting requirements up to SIL 3 and PL e.

Key features include:

• Size range: 1 to 9; DN (nominal diameter): 10 to 125
• Connection options: threaded or flanged
• Operation types: quick opening/quick closing or slow opening/quick closing
• Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Protection rating: IP65
• Available versions with position indicator, visual indicator, fitted bypass/pilot gas valve, or fitted pressure switches
