Solenoid Valve for Gas, Class A, 500 mbar, IP65 Rated

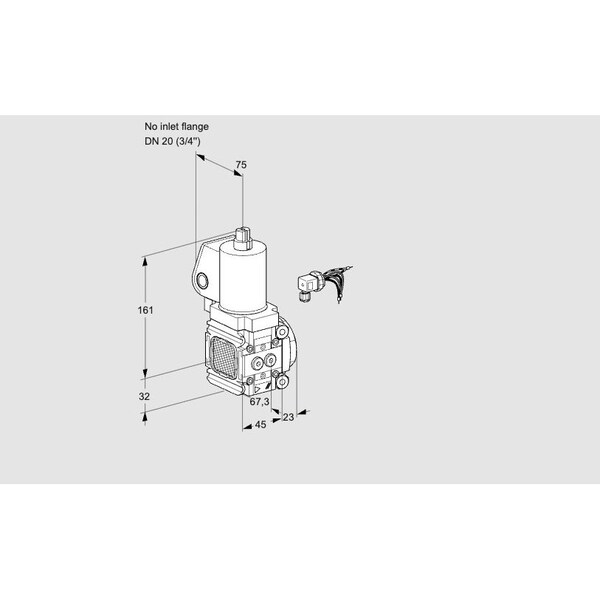

The HONEYWELL KROMSCHRODER VAS1-/20R/NWSL is a Class A solenoid valve intended for use in applications requiring automatic shut-off of gas and air lines. When de-energized, the valve is in a closed position and operates at a maximum pressure of 500 mbar. It includes a pilot lamp and adjustable flow settings, and has an IP65 rating for ingress protection. The unit meets EN 161 standards and holds EU certification as well as FM and CSA approvals. It is certified for use in systems up to SIL 3 and PL e.

Key features include:

• Size range: 1 to 9; DN (nominal diameter): 10 to 125
• Connection options: threaded or flanged
• Operation types: quick opening/quick closing or slow opening/quick closing
• Mains voltage options: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions with position indicator, visual indicator, fitted bypass/pilot gas valve, or fitted pressure switches
