Solenoid Valve for Gas, Class A, 500 mbar, IP65 Rated

The HONEYWELL KROMSCHRODER VAS115R/LW is a Class A solenoid valve intended for use in applications requiring the automatic shut-off of gas and air. It conforms to EN 161 standards, remains in a closed position when not energized, and is rated for a maximum operating pressure of 500 mbar. The unit includes pilot lamp indicator and adjustable flow settings, with an IP65 rating for ingress protection. This model is EU certified as well as FM and CSA approved, and it is suitable for systems up to SIL 3 or PL e.

Key features include:

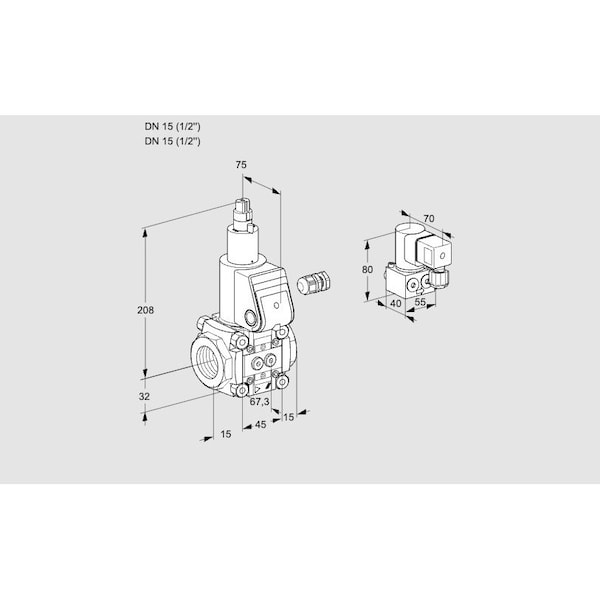

• Size range: 1 to 9; DN (nominal diameter): 10 to 125
• Connection options: threaded or flanged
• Operation types: quick opening/quick closing or slow opening/quick closing
• Mains voltage options: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions include models with position indicator/visual indicator, fitted bypass or pilot gas valve, and fitted pressure switches DG../VC
