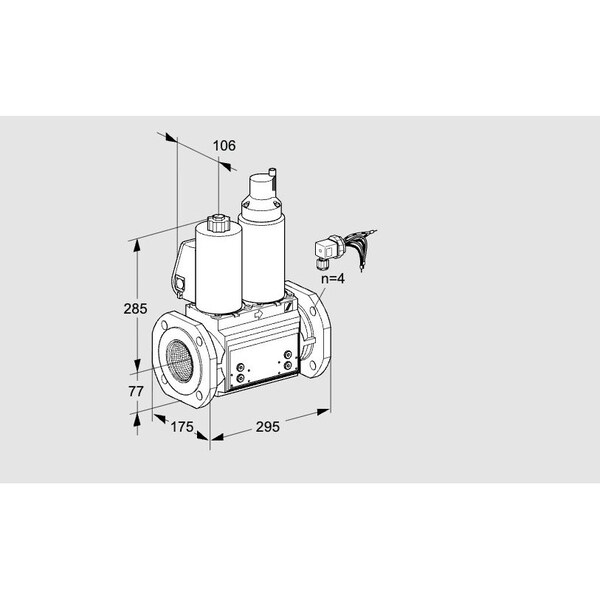

Solenoid Valve for Gas, Class A, NC, 500 mbar, IP65, VCS Series

The HONEYWELL KROMSCHRODER VCS665F05NLWLB/PPPP/PPPP is a Class A solenoid valve intended for use in applications requiring automatic shut-off of gas and air. This valve meets the requirements of EN 161 standards, is normally closed (NC) when de-energized, and supports a maximum operating pressure of 500 mbar. It includes features such as a pilot lamp, flow adjustment capability, and an IP65-rated enclosure. The unit has been assessed according to SIL 3 and PL e criteria, with approvals from EU, FM, and CSA.

Key features include:

• Size range: 1 to 9; DN (nominal diameter): 10 to 125
• Connection options: threaded or flanged
• Opening characteristics: quick opening/quick closing or slow opening/quick closing
• Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions may include position indicator with visual display, fitted bypass or pilot gas valve, and integrated pressure switches
