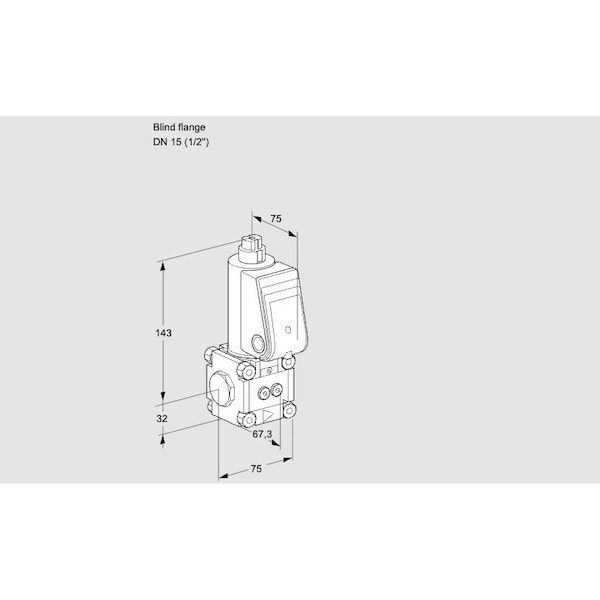

Solenoid Valve for Gas, VAS-VCS Series, Auto Shut-Off, 500 mbar Max

The HONEYWELL KROMSCHRODER VAS1-0/15R/NQ is a Class A solenoid valve intended for use in applications requiring automatic shut-off of gas and air. This valve operates in accordance with EN 161 standards, remaining closed when de-energized, and is suitable for use at pressures up to 500 mbar. It features a pilot lamp and flow adjustment capability, rated to IP65 according to IEC 60529, and certified by relevant authorities, including EU, FM, and CSA. The unit is certified for compatibility with systems rated up to SIL 3 and PL e.

Key features include:

• Size range: 1 to 9; nominal diameter (DN): 10 to 125
• Connection options: threaded or flanged
• Operation: quick opening/quick closing or slow opening/quick closing
• Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions include models with position indicator, visual indicator, fitted bypass/pilot gas valve, or pressure switches
