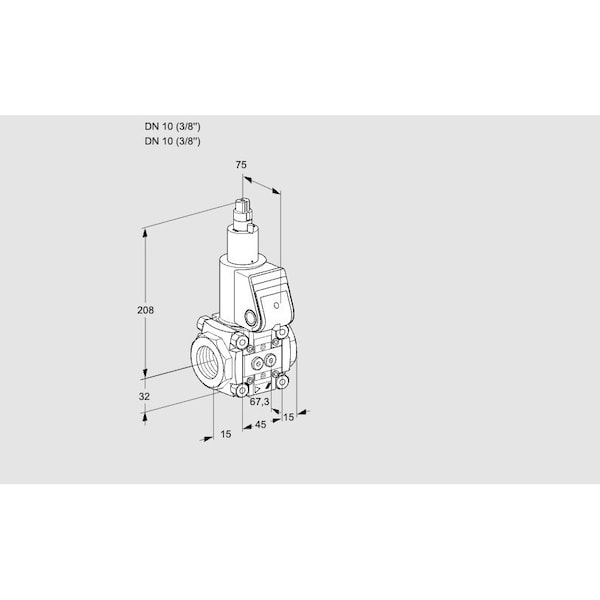

Solenoid Valve for Gas, VAS1T10N/LW, Class A, 500 mbar, IP65 Rated

The HONEYWELL KROMSCHRODER VAS1T10N/LW is a Class A solenoid valve in accordance with EN 161 standards. This valve remains closed when de-energized and features a pilot lamp and flow adjustment. It is suitable for use at pressures up to 500 mbar. The product holds EU certification as well as FM and CSA approvals.

Key features include:

• Size range: 1 to 9; DN (nominal diameter): 10 to 125
• Connection options: threaded or flanged
• Opening/closing operation: quick opening/quick closing or slow opening/quick closing
• Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions include models with position indicator, visual indicator, fitted bypass or pilot gas valve, and fitted pressure switches This valve is intended for use in automatic shut-off applications involving gas and air. Rated IP65 according to IEC 60529, indicating resistance to dust and water ingress. Compatible with systems that require components rated up to SIL 3 and PL e.
