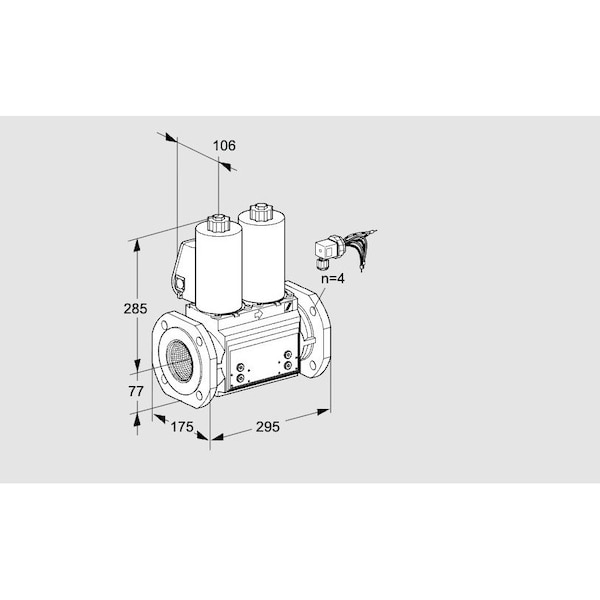

Solenoid Valve for Gas, VCS Series, 500 mbar, IP65, Class A, EN 161
Mfr # KS88204424
Zoro # G115425542
Specifications
Product Information
Description
The HONEYWELL KROMSCHRODER VCS665F05NNKLB/PPPP/PPPP is a Class A solenoid valve intended for use in applications requiring the control of gas and air flow via automatic shut-off mechanisms. This valve conforms to EN 161 standards, is normally closed (de-energized state) as specified by product design, and is rated for a maximum operating pressure of 500 mbar. It includes an integrated pilot lamp, adjustable flow settings, and has an ingress protection rating of IP65. The unit holds EU certification as well as FM and CSA approvals, and it is certified for use in systems up to SIL 3 and PL e.
Key features include:
- Size range: 1 to 9; DN (nominal diameter): 10 to 125
- Connection options: threaded or flanged
- Operation types: quick opening/quick closing or slow opening/quick closing
- Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
- Electrical connection via terminal block
- Available versions include models with position indicator and visual indicator, fitted bypass or pilot gas valves, and fitted pressure switches DG../VC
