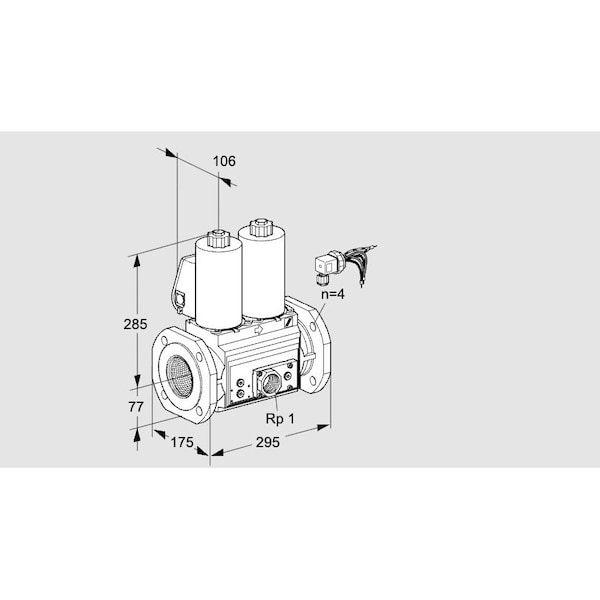

Solenoid Valve for Gas, VCS Series, 500 mbar, IP65, EN 161 Class A

The HONEYWELL KROMSCHRODER VCS665F05NNKLE/PPEP/PPPP is a Class A solenoid valve intended for use in applications requiring automatic shut-off of gas and air. It conforms to EN 161 standards, remains closed when not energized, and supports a maximum operating pressure of 500 mbar. The unit includes pilot lamp indication and flow adjustment options. It has an IP65 ingress protection rating and is certified under relevant EU, FM, and CSA standards. It is suitable for installation in systems classified up to SIL 3 or PL e.

Key features include:

• Size range: 1 to 9; DN (nominal diameter): 10 to 125
• Connection options: threaded or flanged
• Operation types: quick opening/quick closing or slow opening/quick closing
• Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions include models with position indicators, visual indicators, fitted bypass/pilot gas valves, or integrated pressure switches
