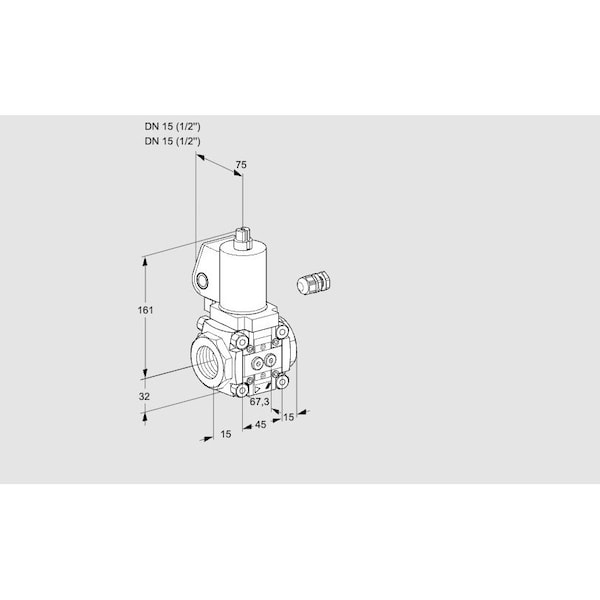

Solenoid Valve for Gas/Air, 500 mbar, IP65, Class A

The HONEYWELL KROMSCHRODER VAS115R/NWSL is a Class A solenoid valve intended for use in automatic shut-off applications for gas and air. The valve is configured to be closed in a de-energized state and operates at a maximum pressure of 500 mbar. It features a pilot lamp, flow adjustment, and an IP65-rated enclosure. The unit is certified according to applicable EU, FM, and CSA standards, with suitability for systems up to SIL 3 and PL e.

Key features include:

• Size range: 1 to 9
• Nominal diameter (DN): 10 to 125
• Connection types: threaded or flanged
• Operation modes: quick opening/quick closing or slow opening/quick closing
• Mains voltage options: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions include models with position indicators, visual indicators, fitted bypass/pilot gas valves, or integrated pressure switches
