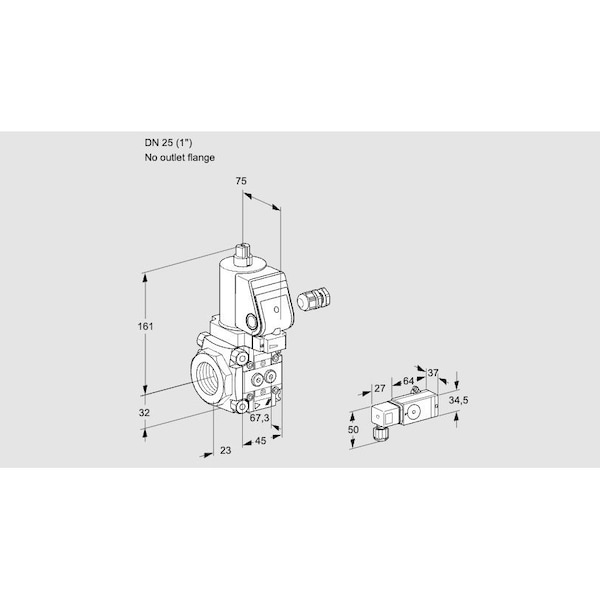

Solenoid Valve for Gas/Air, 500 mbar, IP65, EN 161

The HONEYWELL KROMSCHRODER VAS125/-R/NQSR is a Class A solenoid valve intended for use in applications requiring automatic shut-off of gas and air. This unit operates according to EN 161 standards; the valve is closed when not energized. It features a maximum operating pressure of 500 mbar and includes both a pilot lamp and flow adjustment capability. The valve is rated IP65 for ingress protection, holds EU certification, and has FM and CSA approvals. It is certified as meeting requirements applicable to SIL 3 and PL e systems.

Key features include:

• Size range: 1 to 9; DN (nominal diameter): 10 to 125
• Connection options: threaded or flanged
• Operation types: quick opening/quick closing or slow opening/quick closing
• Mains voltage options: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions with position indicator, visual indicator, fitted bypass/pilot gas valve, or fitted pressure switches DG../VC
