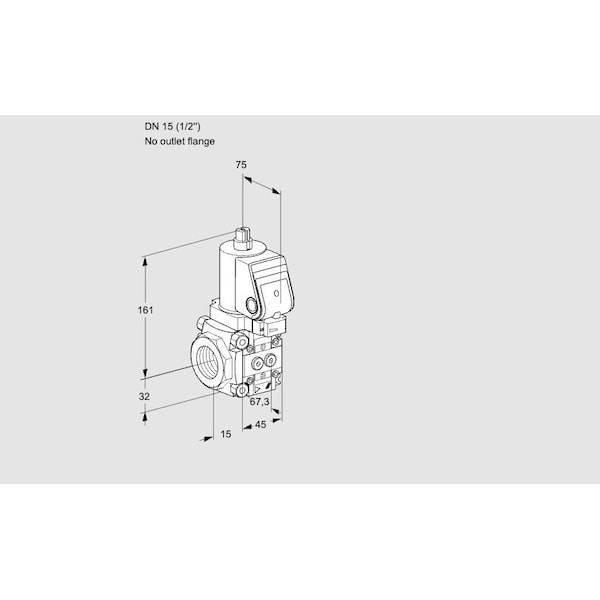

Solenoid Valve for Gas/Air, 500 mbar, IP65, FM/CSA Approved, VAS Series

The HONEYWELL KROMSCHRODER VAS1T15/-N/NQSR is a Class A solenoid valve intended for use in automatic shut-off applications for gas and air. When de-energized, the valve is in a closed position and is rated for operation at pressures up to 500 mbar. It features a pilot lamp, flow adjustment capability, and an IP65-rated enclosure. The unit is certified according to applicable EU standards and has FM and CSA approvals, as well as certifications for systems up to SIL 3 and PL e.

Key features include:

• Size range: 1 to 9
• Nominal diameter (DN): 10 to 125
• Connection options: threaded or flanged
• Operation types: quick opening/quick closing or slow opening/quick closing
• Mains voltage options: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions include models with position indicators, visual indicators, fitted bypass/pilot gas valves, or pressure switches
