Solenoid Valve for Gas/Air, Class A, 500 mbar, IP65 Rated
Mfr # KS88203620
Zoro # G915421959
Specifications
Product Information
Description

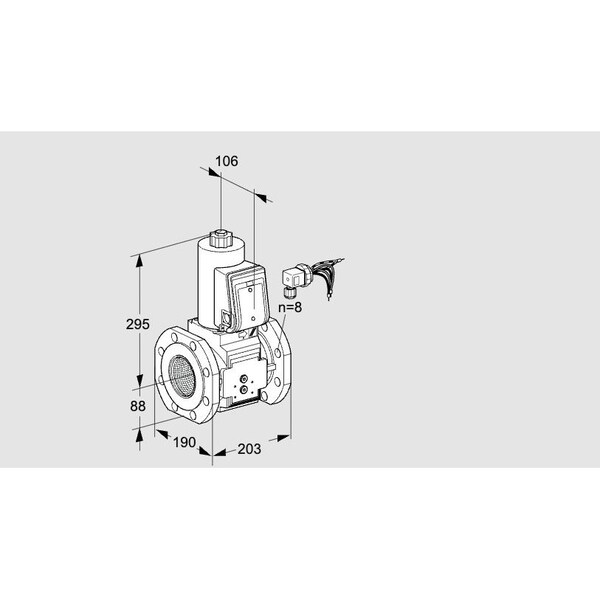

The HONEYWELL KROMSCHRODER VAS780F05NQB/PP/MM is a Class A solenoid valve intended for use in applications requiring automatic shut-off of gas and air, meeting EN 161 standards. This unit operates in a normally closed position when de-energized and includes pilot lamp indication and adjustable flow settings. It is rated for operation at pressures up to 500 mbar, has an ingress protection rating of IP65, and holds certification according to EU standards as well as FM and CSA approvals. The valve is certified for use in systems rated up to SIL 3 and PL e.
Key features include:
- Size range: 1 to 9; DN (nominal diameter): 10 to 125
- Connection options: threaded or flanged
- Operation types: quick opening/quick closing or slow opening/quick closing
- Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
- Electrical connection via terminal block
- Available versions with position indicator, visual indicator, fitted bypass/pilot gas valve, or pressure switches DG../VC
