Solenoid Valve for Gas/Air, Class A Shut-Off, VCS Series, IP65 Rated

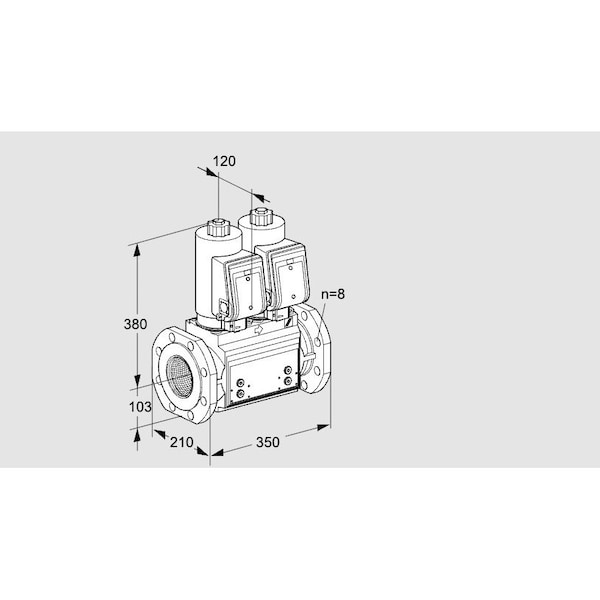

The HONEYWELL KROMSCHRODER VLV ASSY, DBL SOLND, VCS8T100A05NNQSRB/PP is a solenoid valve suitable for use with gas and air systems as specified by manufacturer. Classified as a Class A automatic shut-off valve to EN 161 standards, it remains closed when de-energized and includes pilot lamp indication and adjustable flow settings. The unit rated for a maximum operating pressure of 500 mbar and rated to IP65 ingress protection standard. It holds certification according to SIL 3 and PL e standards.

Key features include:

• Size range: 1 to 9; DN (nominal diameter): 10 to 125
• Connection options: threaded or flanged
• Operation types: quick opening/quick closing or slow opening/quick closing
• Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions include models with position indicator, visual indicator, fitted bypass or pilot gas valve, and fitted pressure switches DG../VC
